| Parameter : | Single door(4) control panel |
| Communication Type : | TCP/IP/ (10/100M) |
| Size of PCB board : | 157*130*20mm |
| Working Voltage : | DC9V-14V |
| Power Consumption | Less than 500mA |
| Input Format of Reader : | Wiegand 100m (Suggest 80m) |
| Register Cards : | 42.000 (Can be extended) |
| Record Capacity : | 200,000 (Can be extended) |
| Exit Switch : | 1 |
| Door Sensor Interface : | 1 |
| Anti Pass Back (APB) : | Yes |
| Alarm Extension : | 1 enter and 1 exit |

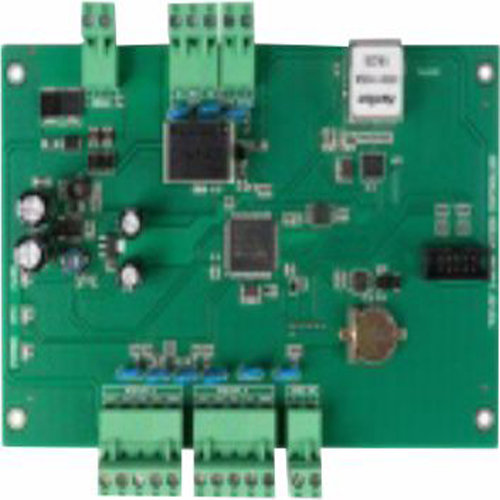

AD-1 Single door(4) control panel
One Door Access Controller
• Access Controller for Door/Bar-rier/Turnstiles
• 1 Door Control | 2 Reader
• 42000 Cards, 20000 Record Capacity
• Wiegand-Card/QR/Finger/Face Reader Support
