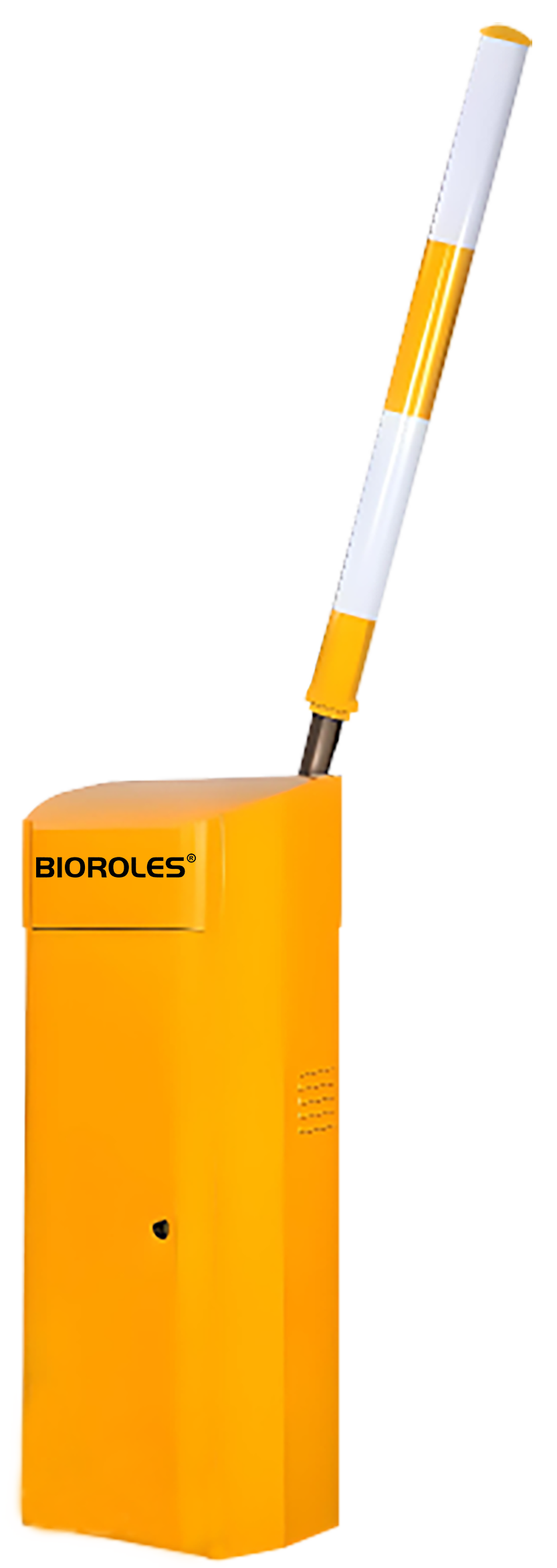

BM-DCT04

DC Springless Barrier for beams up to 6M and is suitable for large industrial


Industrial High Speed
DC Barrier Gate (Suitable For Toll Gate)
■ DC Brushless Servo Motor With Frequency
Conversion Control, Allow For A Smooth Trip of
The Gate Arm With No Bounce In The End Position
■ Fastest Running Speed Can Be 0.4 second (0.4~0.9sec Adjustable)
■ 100% Duty Cycle And Free-Maintenance Make The Barrier Be Proper
■ Upto 6mtr Boom & Boom Stand
■ Protection Class IP55, Right/Left Side Installation
■ Normal Work Life: 10 Million Times

Item / Model : BM-DCT04
Running Speed : ( 0.4~0.9s adjustable)
Boom Type : Carbon Steel Straight, 90 Folding 180 Folding
Max Boom Length : 6 Meter
Input Voltage : AC220V±10%, AC110V±10%, 50/60HZ
Motor Voltage : DC24V
Enclosure Rating : IP54
Working Temperature : -35C-+85°C
MTBF : 10,000,000 times
Duty Cycle : 100%
Traffic Flow Application : 24 hours uninterrupted operation
Max Motor Power : 300W
Max Motor Speed : 90r/min
Max Torque : 480N.m
